Inverter Feature
1.Easy & Fast Installation . solar charger ,inverter, battery, All in one box
2.Compact & Elegant Design . Unique art design and convient output connect port .
3.Maximized Self consumption . Less energy using from utility . more from natural solar power .
4.Fexible energy storage capacity . support solar power , gas power , grid power 3 ways of power charge.
5.Smart protection and monitor. Over Voltage. Over Temperature/Overload ,Battery BMS report and full protection . support wifi or app monitor .
6.long life and safety.
Highlight

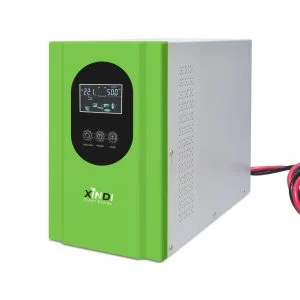

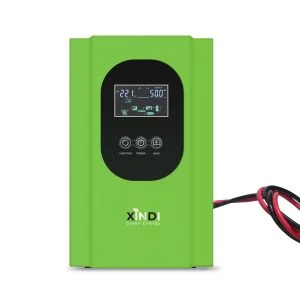

Product Detail
Inverter Technical Parameters
모델 | XHES PRO-T50248 |
Power | |
정격 전력 | 5000W |
피크 전력(20ms) | 15000VA |
MPPT | |
Maximum photovoltaic input voltage（Voc) | 500VDC |
Maximum photovoltaic input power | 5500W |
MPPT 추적 범위 | 120V-430VDC |
Photovoltaic charging current | 100A |
입력 | |
Standard battery voltage | 48V |
Mains input voltage/frequency | 208VAC/220VAC/230VAC/240VAC |
산출 | |
Output waveform/conversion efficiency | Pure Sine Wave/90% |
Maximum output voltage/frequency (inverter mode) | 208VAC/220VAC/230VAC/240VAC±2%,50Hz±5%,60Hz±5% |
배터리 | |
배터리 유형 | LiFePO4 Battery |
Battery Capacity | 51.2VDC 100AH （Parallel battery, standard rack mounted，3U） |
Maximum charging/discharging current | 100A |
Charge/discharge cut-off voltage | 44.8VDC/58.4VDC |
Other | |
Protection and Warning | Equipped with overvoltage, low voltage, overload, short circuit, and high temperature protection |
protection grade | IP20 |
표시하다 | LCD+LED |
Cooling method | Intelligent fan |
Communication method | RS485 communication/RS232, mobile app (WIFI monitoring or GPRS monitoring) |
Working mode | Municipal electricity priority/photovoltaic priority/energy-saving mode |
Operation Temperature | -10℃ to 40℃， derating above 45℃ |
상대습도 | 0%-95% No condensation |
Size | |
Product size(L*W*Hmm) | 525*180*900 |
Package size(L*W*Hmm) | 535*190*910 |
Wiring Diagram
Application Case
패키지
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
